Qbic QTD1060

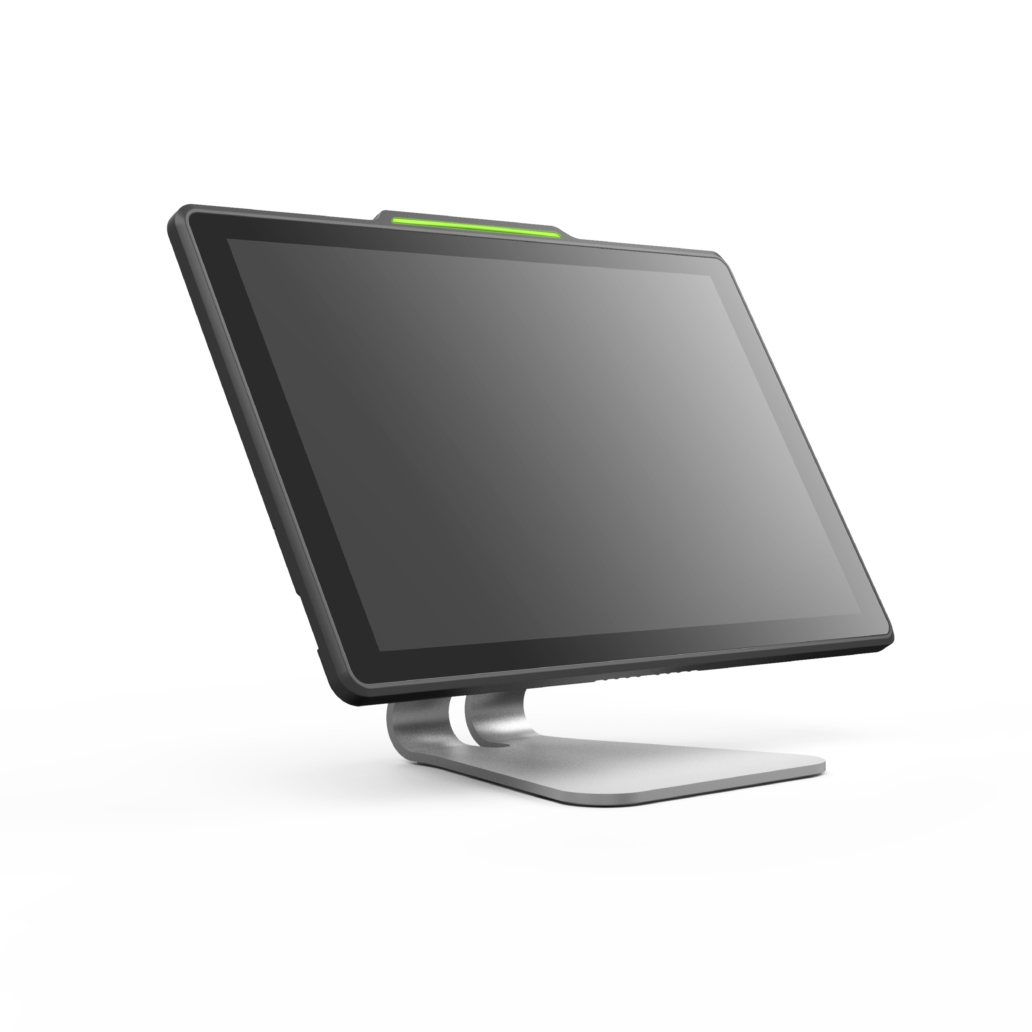

QBIC Technology - TD1060 QBIC Super Slim 10.1 Inch Room Booking & Interactive Panel
- Model: TD-1060 Slim-B
- Category: Uncategorised
Full Specifications
QTD1060: detailed spec
TD-1060 Slim
Description/tagline"Lightweight, Slim, and Built to Last."
Website Specs:
Programming APIHTML5 / SMIL / Android API
PoE+Yes
BluetoothYes, BLE Beacon (Optional)
Light BarFront LED
OSAndroid 12 / 14
CPUARM Quad-Core 1.5Ghz (64 Bit)
Memory2GB DDR3L
Storage16GB eMMC
Video DecoderH.264 / H.265, VC-1, MPEG-4, VP8
Image CodecsJPEG/BMP/GIF/PNG
Audio CodecsMPEG/OGG/ACC
Speaker2W X 2
Size (Inch)10.1"
Display Resolution1280 X 800 (16:10)
Brightness350 Nits
Contrast Ratio1000:1
TouchYes (Multi-Touch)
Viewing Angle (H/V)170° / 170°
Orientation DisplayLandscape / Portrait
Ethernet1 x RJ45 (10M/100M) PoE+
DC InputYes
USB 2.02 x USB2.0 type A
Audio1 x 3.5mm stereo (TRRS Type OMTP)
ADB1 x Micro USB (ADB)
Storage Expansion1 x Micro SDHC slot (Support up to 128Gb)
Reset ButtonYes
Power ButtonYes
WLAN802.11B/G/N/AC (Optional)
Input VoltageDC 12V
Dimensions (WxDxH)248 x 166 x 20.8 mm / 9.76 x 6.54 x 0.82 inch
Net Weight615g / 1.375 Ibs
Mounting TypeGlass / Surface
MaterialPlastic
Operating Temperature0~50°C (32°F to 122°F)
Storage Temperature-20°C to 70°C (-4°F to 158°F)
Ambient Relative Humidity10% to 90% (non-condensing)
CertificationCE / FCC / BSMI / NCC / IMDA / RoHS
Warranty Period1 Year
Adapter (Optional)DC 12V, 1.5A
Bracket Kit (Optional)Screws x1, Bracket x1, Adhesive Tape x1
