← Back to Products
Commercial Audio Products/Ceiling Speaker
ACS62V-BB — Ceiling Speaker

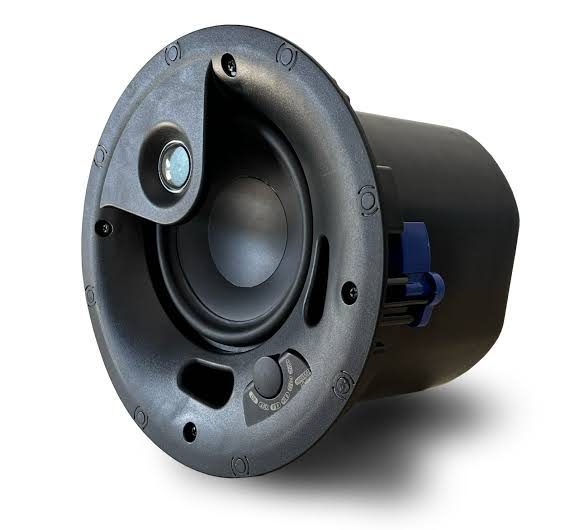

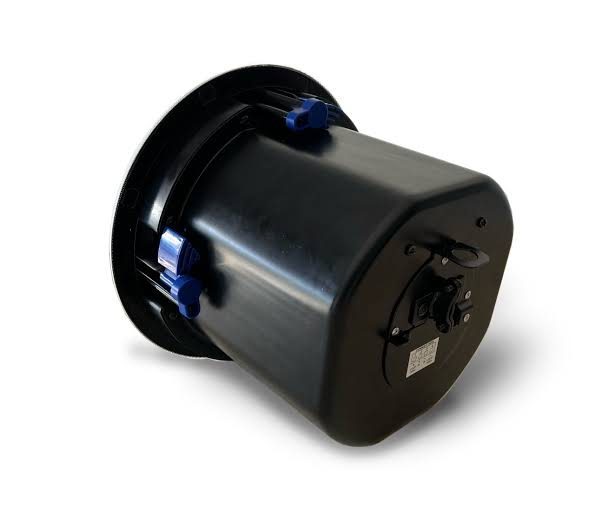

AVICO - Commercial 6.5" 100V Ceiling Speaker 8/16/32WATT - Black Back Can - Single Unit
- Model: HSR168-6TH
- Category: Commercial Audio Products/Ceiling Speaker
Full Specifications
ACS62V-BB: detailed spec
Mounting Type7 inch metal backbox
Voltage/Impedance Options100V / 70V / 8 ohm selectable
Frequency Response75 Hz - 20 kHz
100V Tap Settings32 W / 16 W / 8 W
70V Tap Settings32 W / 16 W / 8 W / 4 W
Power Rating80 W (Continuous/RMS: 32 W)
Nominal Sensitivity89 dB (1W/1m)
Rated Max SPL107 dB (1W/1m)
Nominal Impedance8 ohm
Voice Coil25 mm dome silk tweeter
Enclosure MaterialSteel can, zinc plated
Baffle/RimMedium impact polystyrene
GrillePlated steel, powder coated finish
Inputs4-pin euroblock (individual connection)
ColourWhite
Weight6.8 lb each (Black variant)
Back Can Dimensions (D x H)6.5 inch x 6 inch
