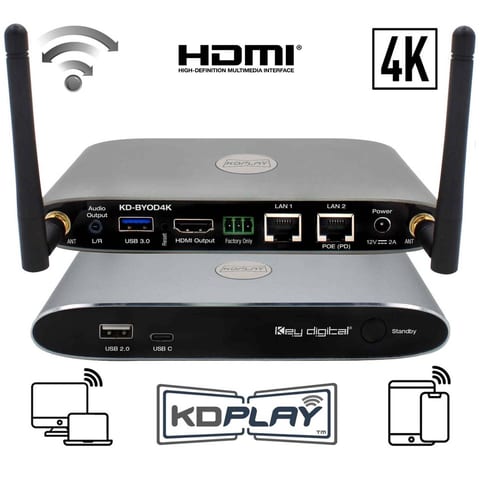

Key Digital KD-BYOD4K
KEY DIGITAL - 4K WIRELESS PRESENTATION SYSTEM
- Model: KD-BYOD4K
- Category: AV Distribution Hardware/Presentation Switchers
Full Specifications
KD-BYOD4K: detailed spec
HDMI Output1x HDMI 19-pin female connector
Video Output Resolution3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x800@60fps, 1280x720@60fps
HDCPHDCP 1.4/HDCP 2.2
Analog Audio Output1x 3.5mm TRS female connector
LAN Ports2x RJ45 (1000Mbps x1, 100Mbps x1)
USB InterfaceUSB 3.0 x1, USB 2.0 x1, Type-C x1
Wireless ProtocolIEEE 802.11 a/g/n/ac
Frequency Bands2.4 GHz & 5 GHz
WiFi AntennaMIMO 2x2
Multi-Presenter Windows4+14 (4 main + 14 thumbnail)
Simultaneous ConnectionsUp to 16
Latency<100ms (minimum 20ms)
Dimensions165mm x 95mm x 24.5mm (with antenna: 165mm x 125mm x 24.5mm)
Weight0.4 lbs (200g)
DC Power12V/PoE
PoE StandardIEEE 802.3af
Power Consumption10W (maximum)
Operating Temperature-4°F to 140°F (-20°C to 60°C)
Included Accessories2x Antennas, 1x Power adapter, 1x Quick start guide, 1x Phoenix terminal, 1x KDPlay Flash
