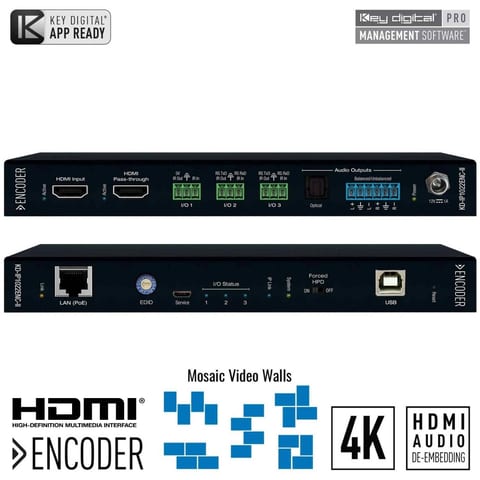

Key Digital KD-IP1022ENC
KEY DIGITAL - 4K UHD AV OVER IP DECODER WITH INDEPENDENT VIDEO,
- Model: KD-IP1022ENC-II
- Category: AV Distribution Hardware/AV over IP
Full Specifications
KD-IP1022ENC: detailed spec
Inputs1 HDMI, 3 Multifunction Control, 1 TCP/IP, 1 USB-B
Outputs1 HDMI, 1 Analog Audio
Power Supply20W desktop
Dimensions6.25" x 1.1" x 3.1"
Weight0.9 lb
Resolution4K (4096x2160, 3840x2160) at 24/25/30Hz
Latency<40ms at 4K
Signal Extension330 ft @ 4K
Bandwidth<=850Mbps (4K), <=250Mbps (1080p), <=125Mbps (720p/1080i)
HDCP2.2 compliant
RegulationCE, RoHS, WEEE
