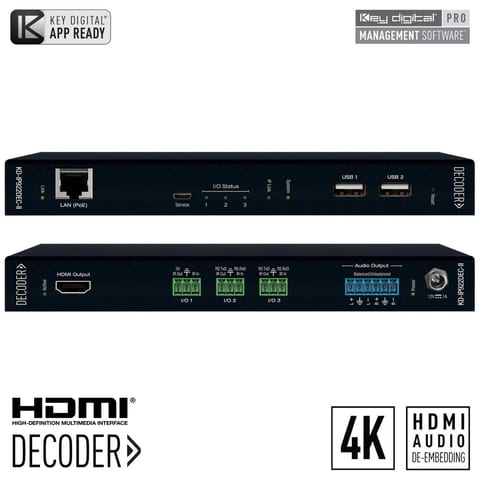

Key Digital KD-IP922DEC-II
KEY DIGITAL - 4K UHD AV OVER IP DECODER, POE, AUDIO DE-EMBEDDING, VIDEO WALL PROCESSING, KVM/USB
- Model: KD-IP922DEC-II
- Category: AV Distribution Hardware/AV over IP
Full Specifications
KD-IP922DEC-II: detailed spec
Inputs1 TCP/IP
Outputs1 HDMI, 3 Multifunction Control (IR, Bi-Directional RS-232, Trigger), 1 TCP/IP, 2 USB-A
RJ45 ConnectorShielded TCP/IP 1G/100 BaseT, PoE
Power Supply12V/1A, 20W, desktop type
Product Dimensions6.25" x 1.1" x 3.1"
Product Weight0.9 lb
4K Resolution Support4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit
Signal ExtensionUp to 330 ft./100 m @ 4K 24/25/30(4:4:4)
Data Stream Bandwidth<=850Mbps at 4K, <=250Mbps at 1080p, <=125Mbps at 720p/1080i
Latency<40ms at 4K
HDCP Compliance2.2 compliant, backward compatible
Video Wall CapabilityUp to 16x16, 256 total maximum displays
RegulationCE, RoHS, WEEE
