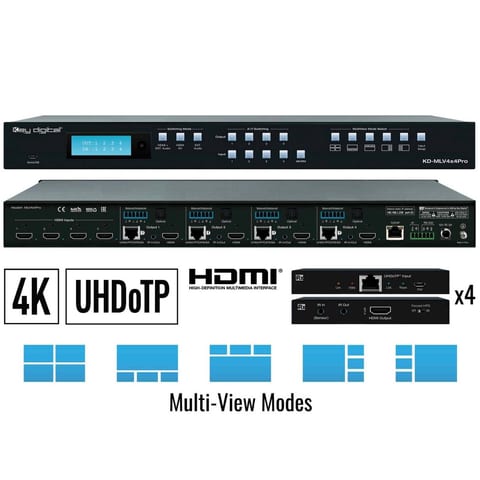

Key Digital KD-MLV4X4PRO
KEY DIGITAL 4X4 MULTI VIEW MATRIX SWITCHER - 4RX INCLUDED
- Model: KD-MLV4x4Pro
- Category: AV Distribution Hardware/Video Wall & Matrix Switchers
Full Specifications
KD-MLV4X4PRO: detailed spec
Input (Each)1 HDMI Connector, Type A, 19 Pin Female
Output (Each)1 HDMI Connector, Type A, 19 Pin Female
Video BandwidthTMDS bandwidth 10.2 Gbps
Video Resolution (Inputs)Up to 3840 x 2160p 4:2:0 at 60fps
Video Resolution (Outputs)3840 x 2160p 4:4:4 at 30fps
Signal Extension over CAT4K/UHD up to 35m (115ft) CAT5e/6 or 40m (131ft) CAT6A STP; 1080p up to 50m/60m
Audio Format Support2-channel and surround up to 5.1 Dolby/DTS
Power12V/5A (60W) AC Power Supply
RegulationCE, RoHS, WEEE
Rack Mount1U, 1 Rack Width
EnclosureBlack Metal
Product Dimensions17.24" x 10.78" x 1.73" (438 x 237.7 x 44mm)
Product Weight8.02 lb / 3.64 kg
HDCPFully licensed and compatible with HDCP 2.2
