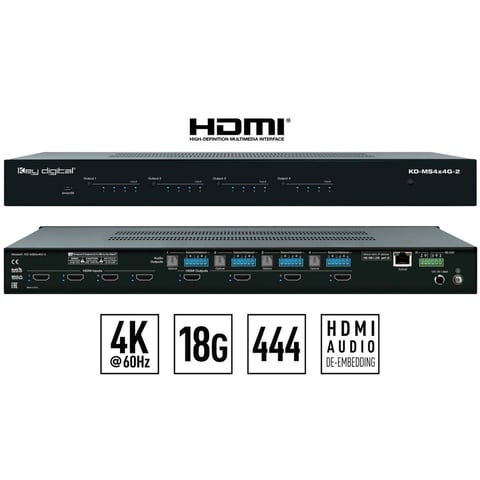

Key Digital KD-MS4x4G2
KEY DIGITAL - 4X4 4K 18G HDMI MATRIX SWITCH WITH INDEPENDENT AUDIO ROUTING
- Model: KD-MS4x4G-2
- Category: AV Distribution Hardware/Video Wall & Matrix Switchers
Full Specifications
KD-MS4x4G2: detailed spec
Input (Each)1 HDMI Connector, Type A, 19 Pin Female
Output (Each)1 HDMI Connector, Type A, 19 Pin Female, plus balanced/unbalanced and optical audio out
Video BandwidthTMDS bandwidth 18 Gbps
4K ResolutionSupports 4096x2160 or 3840x2160 at 24/25/30/60Hz
Power12V/1.66A (20W) AC Power Supply
Dimensions (LxWxH)17.24 x 7.48 x 1.73" (438 x 190 x 44mm)
Weight5.62lbs / 2.55 kg
RegulationCE, RoHS, WEEE, EAC
HDCP LicensingFully compatible with HDCP 2.2
Audio SupportDolby Digital, DTS, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
HDR SupportHDR10 and Dolby Vision
