← Back to Products
Key Digital · AV Distribution Hardware/Presentation Switchers

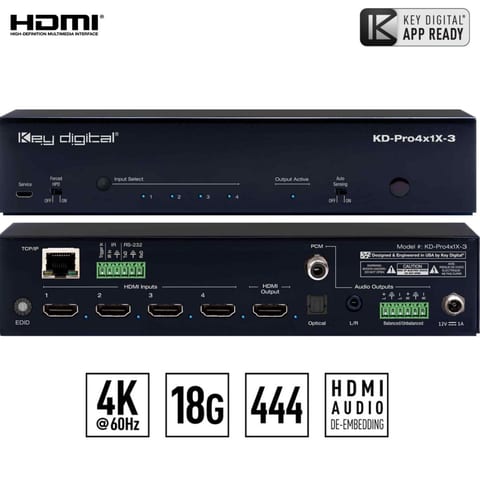

Key Digital KD-PRO4X1X-3
KEY DIGITAL -4x1 4K/18G HDMI Switcher with De-Embedded Audio Output (Optical/Balanced Audio) and IP
- Model: KD-Pro4x1X-3
- Category: AV Distribution Hardware/Presentation Switchers
Full Specifications
KD-PRO4X1X-3: detailed spec
HDMI Input (Each)HDMI Connector, Type A, 19 Pin Female
HDMI OutputHDMI Connector, Type A, 19 Pin Female
HDMI BandwidthTMDS bandwidth 18Gbps
3.5mm Stereo Audio Output1 VRMS line audio
Balanced/Unbalanced Audio Output2VRMS line audio
Digital PCM Audio OutputRCA female, SPDIF format
Digital Optical Audio OutputTOSlink optical female
Power12V/2A, 24W, 100-240VAC, 50-60Hz
EnclosureBlack Metal
Product Dimensions8.54 x 4.05 x 1.57" (216.8 x 102.9 x 39.9 mm)
Product Weight1.71 lbs / 0.776 kg
RegulationCE, RoHS, WEEE, EAC
HDCP LicensingFully compatible with HDCP 2.2
Included Accessories12V/2A 24W DC power supply, IR remote, rack ears, terminal blocks
