Key Digital KD-VW4x4ProK

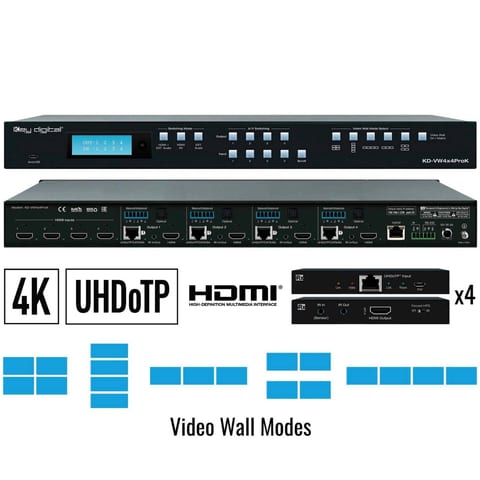

KEY DIGITAL - 4X4 4K UHD HDMI VIDEO WALL PROCESSOR (UP TO 4 SCREENS) / SEAMLESS 4X4 MATRIX SWITCHER
- Model: KD-VW4x4ProK
- Category: AV Distribution Hardware/Video Wall & Matrix Switchers
Full Specifications
KD-VW4x4ProK: detailed spec
Input (Each)1 HDMI Connector, Type A, 19 Pin Female
Output (Each)1 HDMI Connector, Type A, 19 Pin Female, plus balanced/unbalanced and TOSlink optical audio
Video BandwidthTMDS bandwidth 10.2 Gbps
Video ResolutionUp to 3840 x 2160p 4:2:0 at 60fps on inputs; 3840 x 2160p 4:4:4 at 30fps on outputs
Power12V/5A (60W) AC Power Supply
RegulationCE, RoHS, WEEE
Rack Mount1U, 1 Rack Width
EnclosureBlack Metal
Product Dimensions17.24" x 10.78" x 1.73" (438 x 237.7 x 44mm)
Product Weight8.02 lb / 3.64 kg
Signal Extension over CAT — 4K/UHDUp to 35m (115ft) CAT5e/6, up to 40m (131ft) CAT6A STP
Signal Extension over CAT — 1080pUp to 50m (164ft) CAT5e/6, up to 60m (197ft) CAT6A STP
Accessories IncludedPower supply, remote control, 4x UHDoTP Rx units, IR emitters/sensors, terminal blocks, USB cable, rack ears
