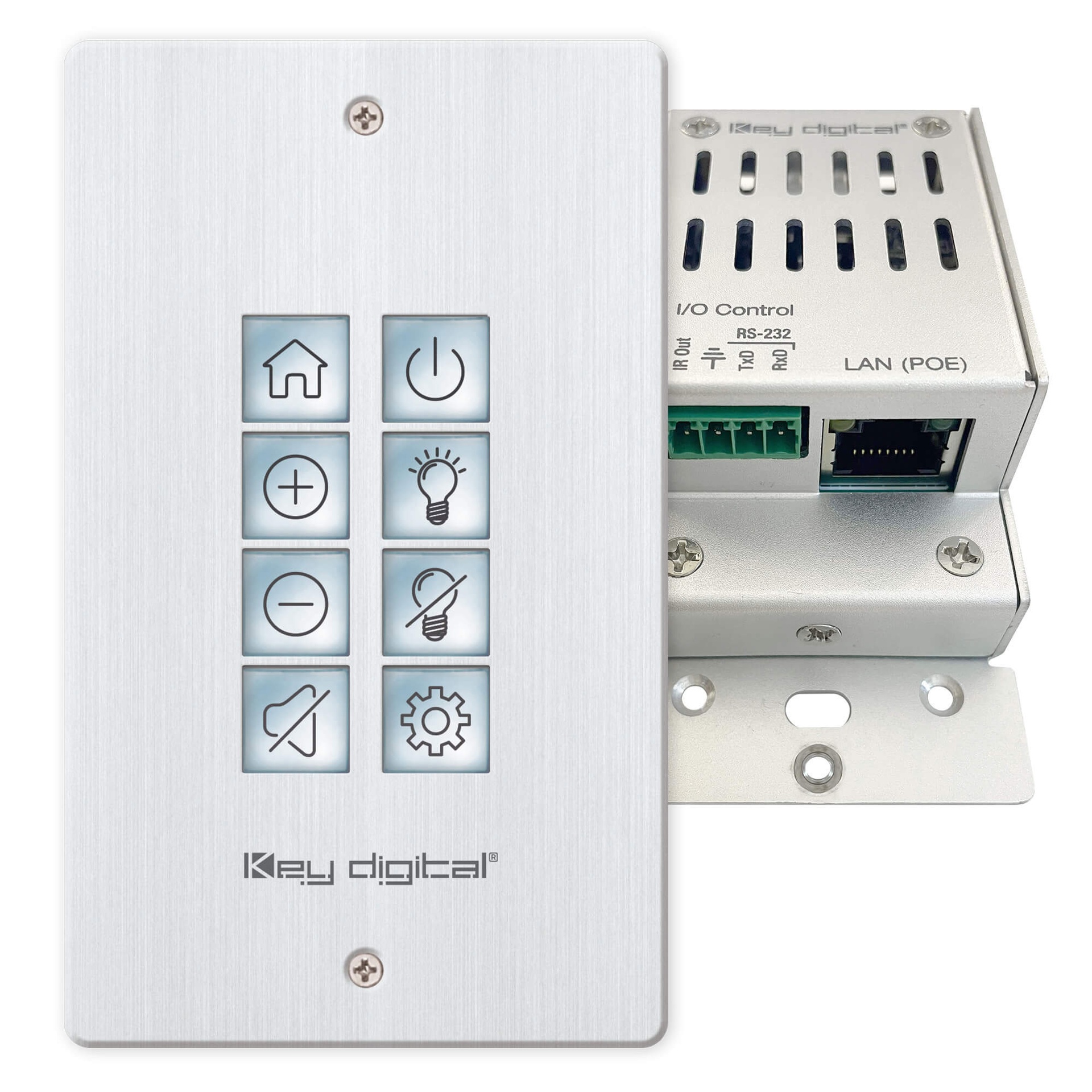

Key Digital KD-WP8-3
KEY DIGITAL - 8 BUTTON PROGRAMMABLE KEYPAD
- Model: KD-WP8-3
- Category: AV Distribution Hardware/IR & Control
Full Specifications
KD-WP8-3: detailed spec
Technical
PoE Power Consumption≤4W

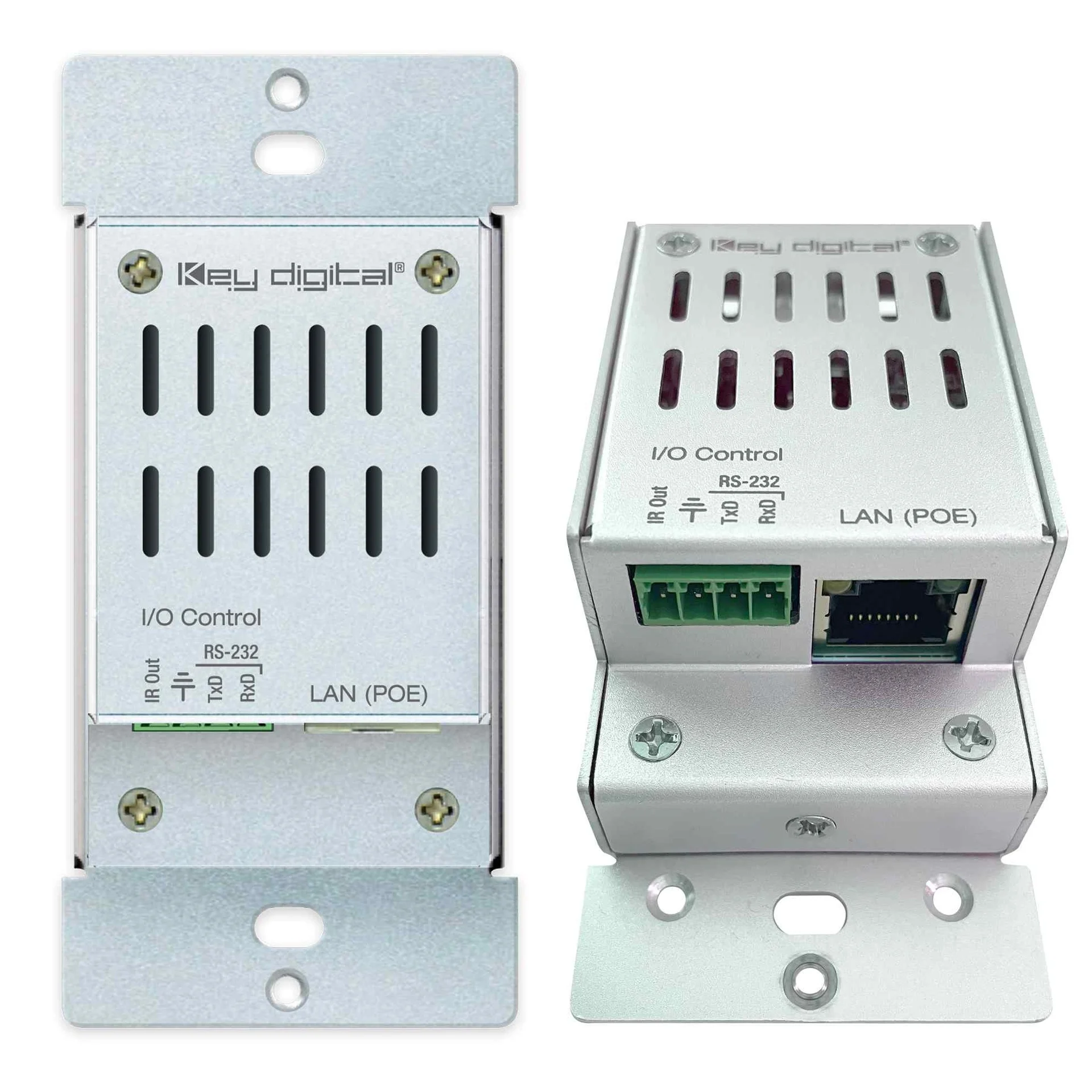

RJ45 ConnectorShielded Link, 1x LAN

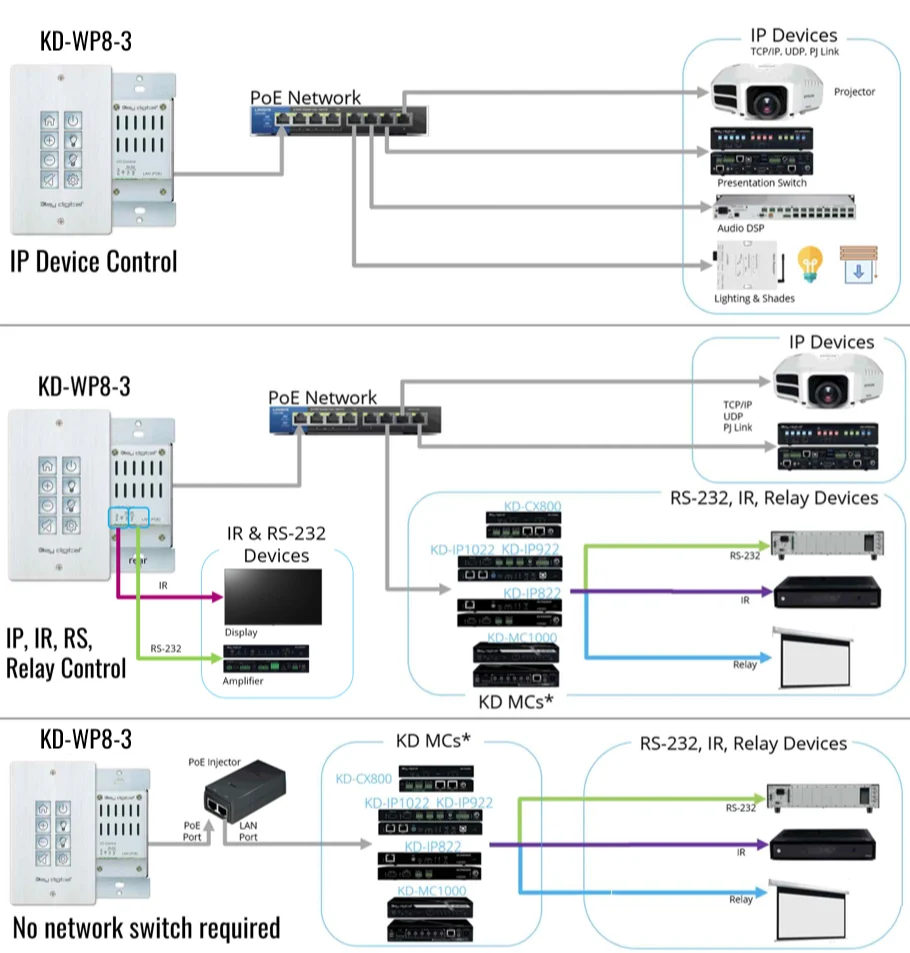

Unit ControlBi-directional TCP/IP on RJ45, USB Micro
Control Connector4-Pin Phoenix for simultaneous IR and RS-232
Max IR & RS-232 Cable Length500 ft / 152 m, verified at 115,200 baud rate
General
RegulationCE, RoHS, WEEE, EAC
Buttons8 blue/red backlit buttons with clear outer cap
Wall PlateU.S. 1-gang wall plate in aluminum enclosure
Button-Cover Finish PlateBrushed aluminum, with metal grid to cover spaces between buttons (non-standard)
Product Dimensions4.13 in x 1.93 in x 1.21 in (105 x 49 x 30.8 mm)
Packaging Dimensions5.75 in x 4.13 in x 2.56 in (146 x 105 x 65 mm)
Product Weight0.5 lb / 0.23 kg
Shipping Weight1.5 lb / 0.68 kg
Included Accessories
USB A to USB Micro Cable (6ft)Qty 1
Brushed Aluminum Decora PlateQty 1
Decora and Box Mounting ScrewsQty 4
Inner Button CapsQty 10
Outer Button Caps (Clear)Qty 10
Flathead Mini ScrewdriverQty 1

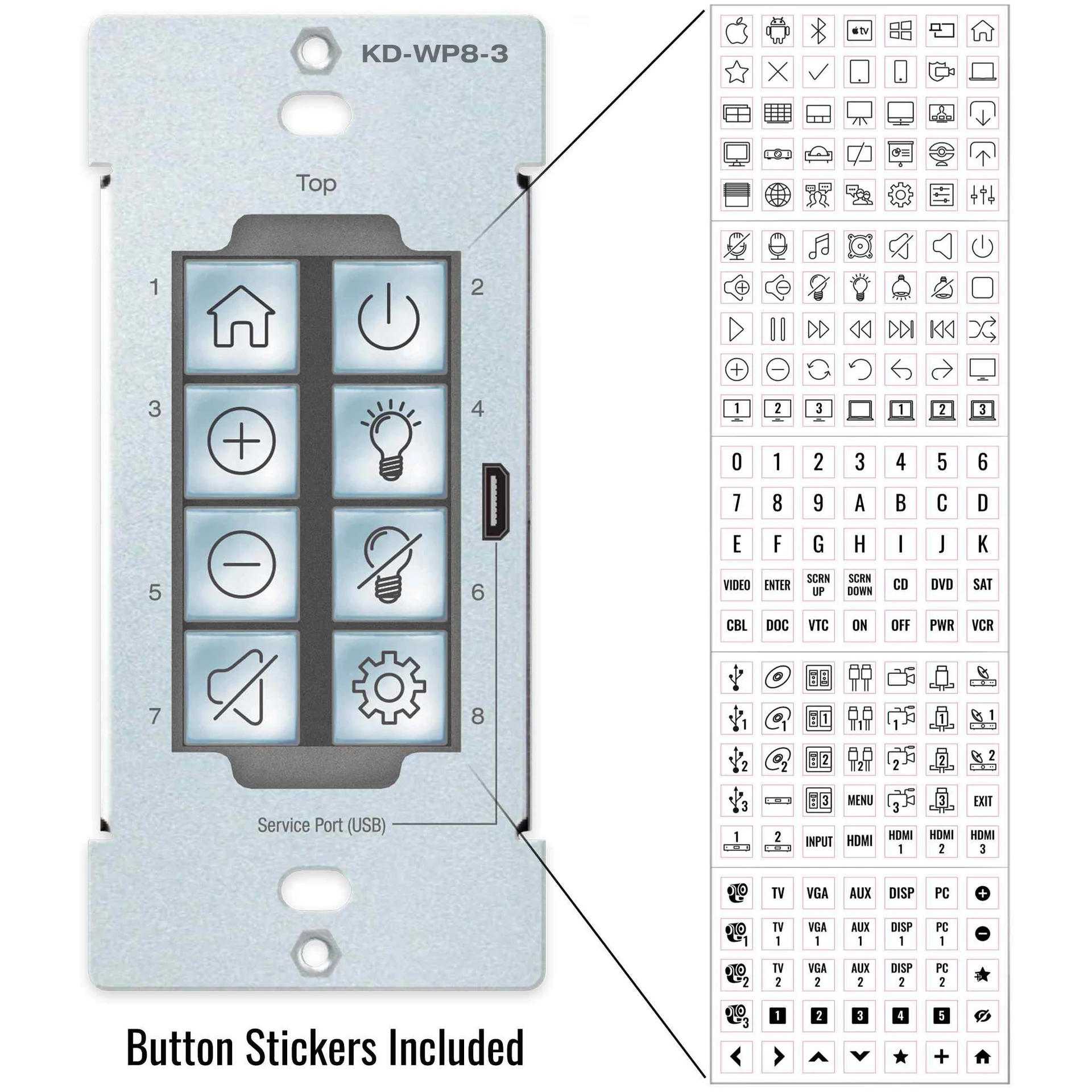

Icon Button Sheets (Set)Qty 1
IR Emitter (6ft)Qty 1
