Key Digital · AV Distribution Hardware/HDMI Signal Management

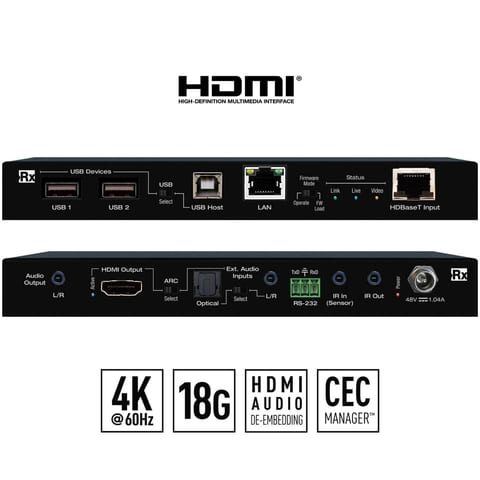

Key Digital KD-X100MRX

KEY DIGITAL - FULL FUNCTION 4K/18G HDBT RX (100M) WITH USB, LAN, ARC, L/R AUDIO IN/OUT, RS232

Enquire now→
  • Model: KD-X100MRX
  • Category: AV Distribution Hardware/HDMI Signal Management

Full Specifications

KD-X100MRX: detailed spec

Inputs1 HDBaseT, 1 L/R Stereo Audio, 1 Optical Audio, 1 Bi-Directional RS-232, 1 IR
Outputs1 HDMI, 1 L/R Stereo Audio, 1 Bi-Directional RS-232, 1 IR
USBUSB2.0 on 2 USB A and 1 USB B connection
LANShielded TCP/IP 1G/100 BaseT
Power48V / 1.04A, 50W
RegulationCE, RoHS, WEEE, EAC
EnclosureBlack metal
Product Dimensions7.16 x 4.8 x 0.87" (182 x 122.5 x 22.2mm)
Product Weight1 lbs
Ultra HD/4KUp to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4
Signal Extension4K/UHD (18G) up to 100m/328ft; 1080p up to 150m/492ft
Surround Audio SupportDolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, Dolby Atmos
HDCP 2.2Compliant and backward compatible
