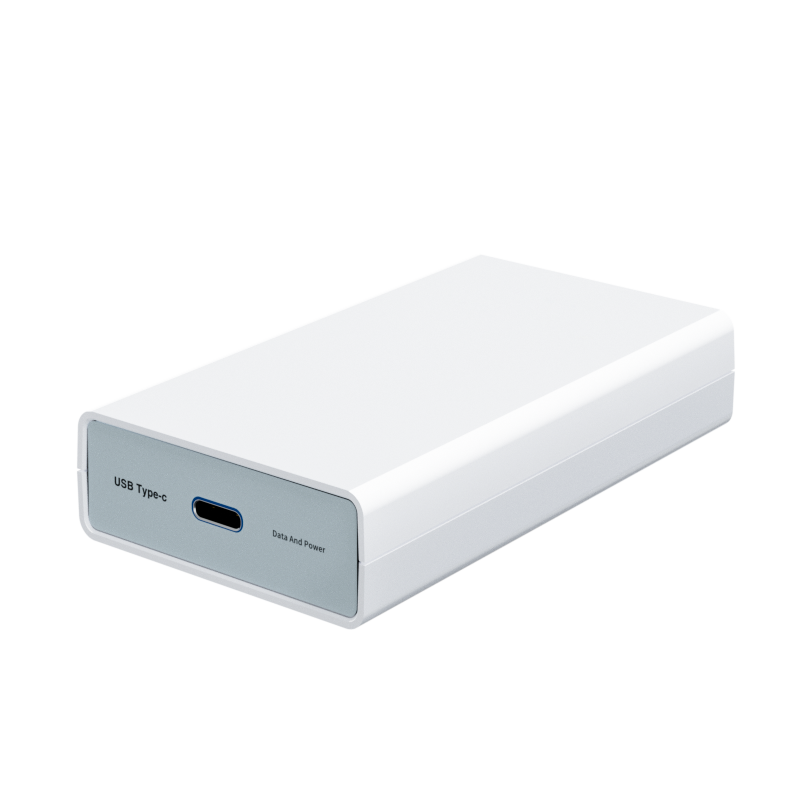

Qbic QAC621
QBIC POE ADAPTOR FOR TD-0360 5VDC VIA USB-C
- Model: AC-621
- Category: Digital Signage Solutions/Signage Accessories
Full Specifications
QAC621: detailed spec
Input44-57V DC
PoE ComplianceIEEE 802.3at
Pin Assignment4/5(+),7/8(-) or 3/6(+),1/2(-) or 3/6(-),1/2(+)
Output5V-2.6A, 9V-1.75A, 15V-1.37A, 20V-1.15A, 12V-1.45A
Data Speed100Mbps
Operating Temperature-20°C to 40°C
Operating Humidity20% to 80%, no condensation
Operating AltitudeBelow 2000m
Storage Temperature-20°C to 70°C
Storage Humidity10% to 90%, no condensation
Network TransmissionCat5 or above UTP (up to 100m)
CertificateCE
IP ClassIP40
Dimensions91mm x 51mm x 18.5mm
