Qbic · Display Solutions/Touch Screen Displays

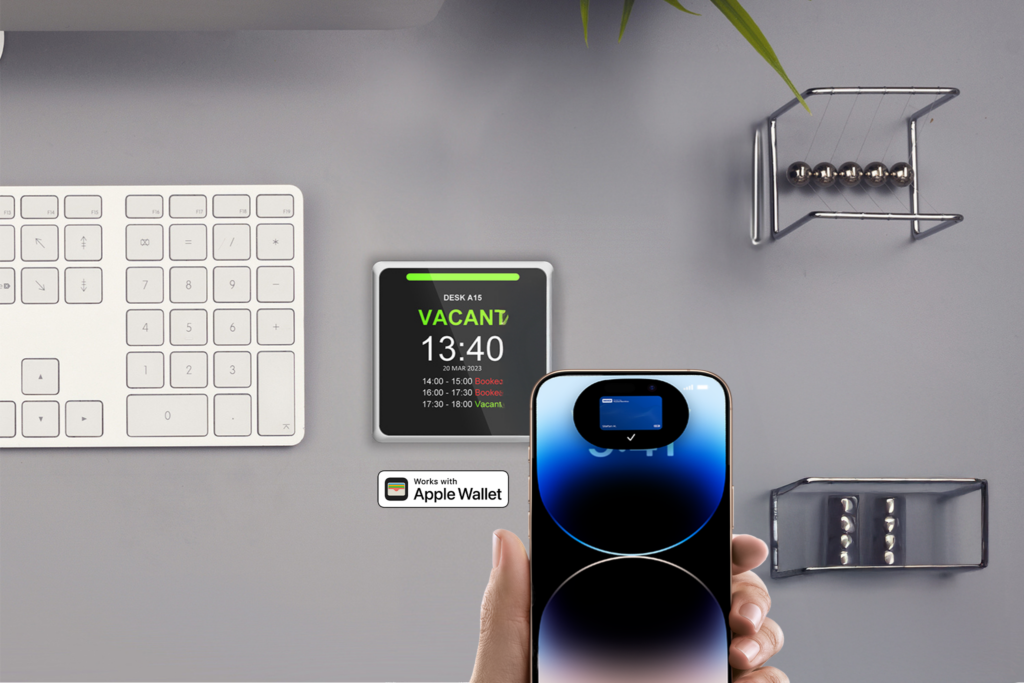

Qbic QTD0360-H
QBIC PROGRAMMABLE FANLESS 3.6" TOUCH PANEL HID TECH RFID READER
- Model: TD-0360-H
- Category: Display Solutions/Touch Screen Displays
Full Specifications
QTD0360-H: detailed spec
OSAndroid 12 / 14
CPUQuad-Core ARM Cortex-A35
GPUMali-G31 MP2
RAM2GB
Storage16GB eMMC
Display Size3.6 inches (on-cell touch)
Display Resolution480 x 480 pixels
Brightness350 nits
Viewing Angles170° (horizontal/vertical)
RFID/NFC13.56MHz & 125KHz (Ver. H — HID)
WiFiWiFi 5 (dual-band 2.4/5GHz, 802.1x security)
USB Type-C1x (power input)
Micro USB1x (ADB function)
LED Indicators2x (256 colors; front and rear)
Power Input5V/2A
Dimensions90 x 90 x 13mm (3.54" x 3.54" x 0.51")
Weight (net)130g
Housing MaterialPC plastic
MountingGlass / Surface / Wall (Flex-Mount)
Operating Temperature0-40°C
Water ResistanceFront display splash-resistant
CertificationsCE, UKCA, FCC, IMDA, CB; RoHS / REACH compliant
