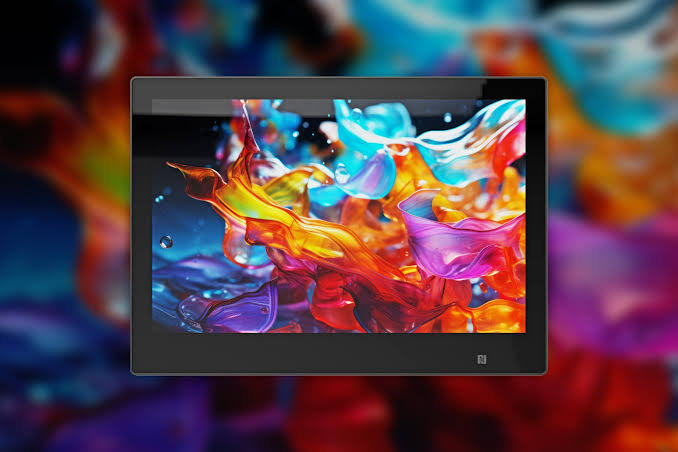

QTD1070B

QBIC 10.1" PROGRAMMABLE (HTML5/ANDROID 12 ), PLUG & PLAY, FANLESS 10" ANTIMICROBIAL & ANTI-FINGER CO

Full Specifications

QTD1070B — detailed spec

Description/tagline"Modern Design. Sustainable Room Management."

Website Specs:

OSAndroid 12 / 14

TouchYes, Multi touch

NFC/RFID (Optional)Std. Version (13.56MHz) / Opt. H Version, (Embedded Human-Interface-Device) (13.56M&125KHz)

Memory2GB LPDDR4

Storage32GB eMMC

Video decoderH264 / H265, VC-1, MPEG-4, VP9

Image codecsJPEG/BMP/GIF/PNG

Audio codecsMPEG/OGG/AAC

CPUARM Quad-core Cortex-A55 up to 2.0GHz (64 bit)

PoEPoE+ (25W)

BluetoothYes, BLE Beacon (Optional)

Microphone2 (Noise Reduction & Auto Echo Cancellation)

ALS + Proximity sensorYes

WatchDogYes, Independent watchdog

Size10.1" (85/85/85/85)

Resolution1920 x 1200 (FHD)

Contrast1000:1

Brightness430 nits

Ethernet1 x RJ45 (10M/100M/1000M)

USB2 x USB2.0 type A / 1 x USB3.0 type C (w/ ADB)

Analog Stereo out1 x 3.5mm stereo (MIC-in & Audio-out)

Expansion storage1 x Micro SDHC/SDXC slot

Speaker2W x 2

Camera1 x 8M with HDR

Dimensions (WxDxH) (Without stand)242.9 x 173.4 x 20.5 mm

MountingGlass / Surface / Recessed

HousingPlastic & Mg-Al Alloy

EnvironmentOperating Temp. 0~50°C

WLANWLAN 802.11B/G/N/AC (Optional)

Input Voltage (V)DC 12V

Get in touch for pricing and availability.
