Key Digital – 4×4 4K 18G HDMI Audio Matrix Switcher

Description

HDMI Matrix Switching: 4/8 HDMI sources to 4/8 HDMI outputs

Ultra HD/4K Support: 4096×2160 or 3840×2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

 HDCP Licensing: Fully licensed and compatible with HDCP 2.2

HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels

Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p

Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits

Independent Audio and Video Matrix: Output HDMI and Audio ports may switch together or independently

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

EDID: Internal library with 15 internal EDID configurations per input, in addition to native EDID data for any Output/Display

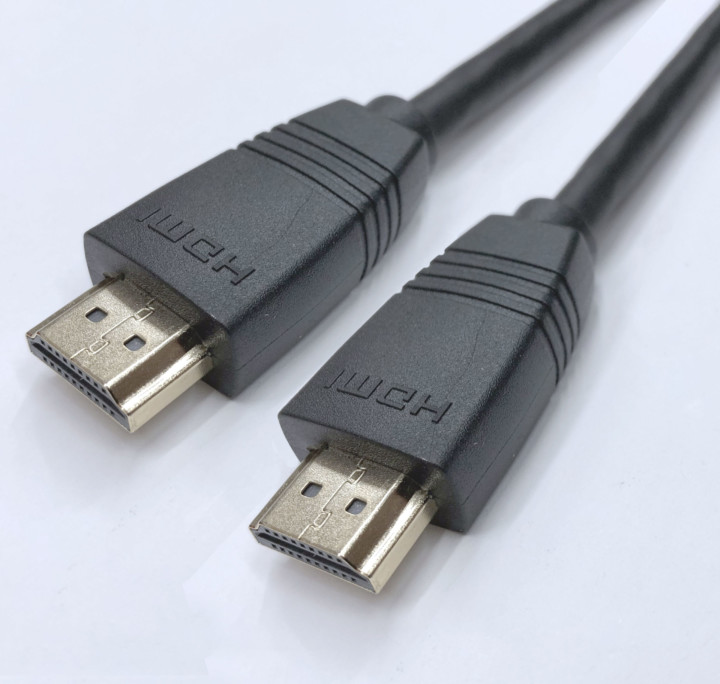

TMDS re-clocking: Support for long HDMI connectivity using Key Digital HDMI cables

Lossless Compressed Digital Audio: Dolby TrueHD, Dolby® Digital Plus, DTS-HD Master Audio, and Dolby® Atmos

Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control

Control System Support: Key Digital app ready. Key Digital Management Software‚ Pro (KDMS‚ Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API

Key Digital App & KDMS Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital App and Key Digital Management Software‚ Pro (KDMS Pro) PC Software
